How to Check Oil Level in Gearbox?




The gearbox oil level should be checked regularly to ensure that it is sufficiently lubricated. To do this, first find the dipstick and remove it. Then, wipe the dipstick clean and reinsert it into the gearbox.

Remove the dipstick again and check where the oil level is in relation to the “full” mark. If it is below this mark, then you will need to add more oil until it reaches the full mark.

  • Park the vehicle on a level surface and turn off the engine
  • Locate the oil dipstick on the gearbox
  • Pull out the dipstick and wipe it clean with a rag or paper towel
  • Reinsert the dipstick fully and then remove it again to check the oil level
  • The oil should be at or near the “full” line on the dipstick
  • If it is not, add more oil as needed until it reaches that level

How Do I Know If My Gearbox Oil is Low?

If you notice that your car is struggling to change gears, it’s a good indication that your gearbox oil is low. Another way to tell is if you see fluid leaking from your car – this will be red or brown in colour, and will have a distinctly oily smell. If you think your gearbox oil may be low, it’s best to get it checked out by a mechanic as soon as possible.

How Do I Fill Up Gearbox Oil?

Assuming you would like a blog post discussing how to fill up a gearbox with oil: “How do I fill up gearbox oil?” is a question that many car owners may have at some point. Filling up your gearbox with oil is not difficult, but there are a few things you should keep in mind to do it properly.

First, check your owner’s manual to find out what type and weight of oil is recommended for your car’s gearbox. You will also need to know how much oil the gearbox holds; this information can usually be found in the owner’s manual as well. Once you have gathered the necessary supplies, park your car on a level surface and engage the parking brake.

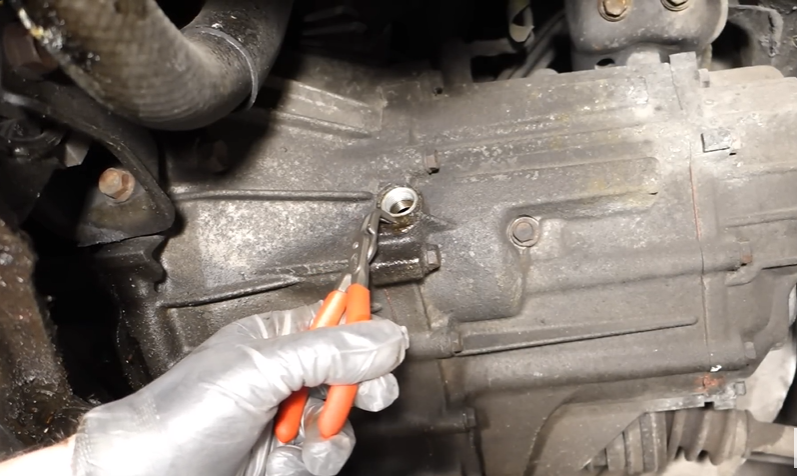

Next, locate the fill plug on the side or bottom of the gearbox. The fill plug will usually have a hexagonal head (like a bolt) and will be slightly larger than the drain plug. Using a wrench, loosen but do not remove the fill plug; then, insert the funnel into the opening and slowly pour in the new oil until it reaches the appropriate level.

Finally, re-tighten the fill plug before starting your car and checking for leaks.

Where is the Dipstick in a Gearbox?

Assuming you are referring to a car, the dipstick for the gearbox is usually located on the side or back of the transmission. It may have a different color handle than the engine oil dipstick.

How to – Check Gear Box Oil // Supercheap Auto

How to Check Manual Gearbox Oil Level

If your car has a manual gearbox, it’s important to check the oil level regularly. Here’s how to do it: 1. Park your car on a level surface and set the parking brake.

2. Place a drain pan under the gearbox. 3. Remove the fill plug and allow the oil to drain out completely. 4. Replace the fill plug and add fresh gearbox oil until it reaches the proper level (consult your owner’s manual for specifics).

Symptoms of No Oil in Gearbox

If your car’s gearbox is low on oil, it will eventually lead to some serious problems. Here are some of the most common symptoms of a gearbox with no oil: 1. Grinding noises when shifting gears: If you notice a grinding noise every time you shift gears, it’s likely that your gearbox doesn’t have enough oil.

This can cause the gears to grind against each other, which will damage them over time. 2. Difficulty shifting gears: Another symptom of a low-oil gearbox is difficulty shifting gears. This is because the lack of lubrication makes it harder for the gears to move smoothly past each other.

You may also notice that it takes longer than usual to shift into certain gears. 3. Leaking oil: If you see any leaking oil beneath your car, it’s likely that your gearbox is the culprit. A low-oil level will cause the seals and gaskets in the gearbox to deteriorate, which will allow oil to leak out.

4. Burning smell: If you notice a burning smell coming from your car, it could be due to an overheated gearbox.

Gearbox Oil Level Indicator

Most cars these days come with some form of oil level indicator, whether it’s a simple dipstick or a more sophisticated electronic system. But what about your gearbox? If you have a manual transmission, then checking your gearbox oil level is just as important as checking the engine oil.

Fortunately, most modern cars have a gearbox oil level indicator built into the dipstick. However, if your car doesn’t have one, then you can easily check the level by removing the dipstick and wiping it clean before reinserting it and withdrawing it again. The oil should reach up to the bottom of the hole in the dipstick.

If you find that your gearbox oil is low, then top it up with the correct type of oil – typically 75W-90 synthetic gearbox oil for most cars. Don’t overfill it though – too much oil can cause leaks and damage to your gearbox bearings.

How to Check Industrial Gearbox Oil Level

Almost all gearboxes these days have some form of oil level indicator. This is generally a dipstick with marks for “full” and “add”. However, checking the oil level in an industrial gearbox can be a little more tricky than your average car engine.

Here are a few tips on how to check industrial gearbox oil level: 1. Park the machine on a level surface and turn it off. Let it sit for at least 15 minutes so that the oil can settle.

2. Remove the filler plug (usually located on the side or top of the gearbox) and insert the dipstick. 3 Clean any dirt or debris off of the end of the dipstick and reinsert it into the fill hole until it stops. Be careful not to over-tighten as this could strip the threads.

4 Remove the dipstick and check where the oil level falls in relation to the full and add marks. If it is below the add mark, you will need to add oil until it reaches that point. Use only fresh, clean oil that is specifically designed for use in industrial gearboxes – do not use motor oil or other lubricants!


If the oil level in your gearbox is low, it can cause problems. Checking the oil level is a simple task that only takes a few minutes. You will need a clean cloth and a flashlight.

First, remove the dipstick from the gearbox. Wipe the dipstick clean with the cloth. Insert the dipstick back into the gearbox and push it all the way in.

Be careful not to touch the sides of the hole when you do this. Pull out the dipstick again and check where the oil level is on it. If it is below the “full” line, you will need to add more oil.
