If you own a vehicle with a 4L60E transmission, you probably know how important it is to keep it running smoothly. One key part of that care is making sure your transmission fluid is at the right level.
But how much transmission fluid does a 4L60E transmission actually hold? Getting this right can save you from costly repairs and keep your ride shifting perfectly. You’ll find the exact amount of fluid your 4L60E needs, plus tips on checking and changing it.
Keep reading to protect your transmission and keep your vehicle performing at its best.

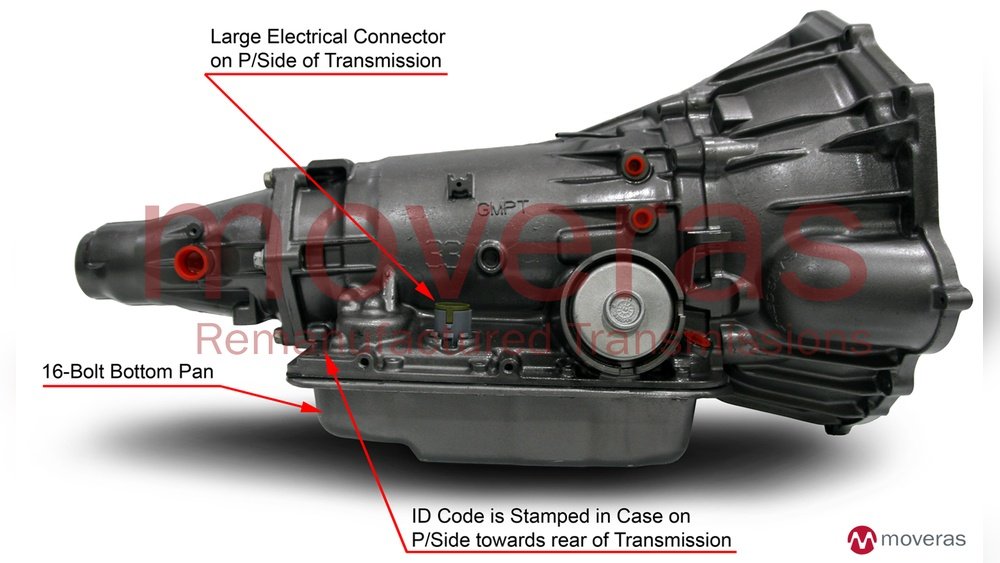

4l60e Transmission Capacity
A 4L60E transmission holds about 12 quarts of fluid during a full service. Checking and maintaining the right fluid level helps the transmission work well. Too little or too much fluid can cause problems.
Fluid Capacity With Pan Drain
The 4L60E transmission holds about 6.9 quarts of fluid when draining only the pan. This amount is enough for routine fluid changes. Draining the pan removes most of the old fluid without disturbing the torque converter or cooler lines.
Checking the fluid level after filling is important. The correct level helps the transmission work smoothly and avoid damage.
Total Fluid Capacity
The total fluid capacity of a 4L60E transmission is around 12 quarts. This includes all parts of the transmission system. Changing all the fluid requires draining the pan, torque converter, and cooler lines.
Full fluid replacement ensures better performance and longer transmission life. It is best done during a complete service or rebuild.
Cooler And Torque Converter Volume
The cooler and torque converter hold about 5 quarts of transmission fluid. This fluid circulates to keep the transmission cool and lubricated. Draining only the pan does not remove this fluid.
Flushing the cooler lines and torque converter is needed for a full fluid change. This helps prevent old fluid from mixing with new fluid.
Credit: rudysdiesel.com
Choosing The Right Transmission Fluid
Picking the correct transmission fluid is key for your 4L60E transmission’s health. The right fluid keeps your transmission running smoothly. It also helps avoid costly repairs and improves performance. Using the wrong fluid can cause slipping, overheating, and wear. Understanding the types and standards of transmission fluid helps you make the best choice.
Recommended Fluid Types
The 4L60E transmission works best with specific fluid types. Dexron VI is the most common fluid recommended. It offers good lubrication and protects internal parts. Some older models use Dexron III, but Dexron VI is better for newer transmissions. Avoid fluids labeled for other transmissions, like ATF+4 or Mercon. These can damage the 4L60E system. Always check your vehicle’s manual for the exact fluid type.
Fluid Specifications And Standards
Transmission fluids meet certain standards to ensure quality. Dexron fluids must pass tests for friction, wear, and heat resistance. The General Motors (GM) Dexron specification is the main standard for 4L60E transmissions. Fluids meeting Dexron VI standards have improved additives and longer life. Choosing fluids that meet or exceed these specs ensures proper function. Using fluids without these standards risks poor shifting and damage.
Fluid Change And Refill Process
Changing and refilling the transmission fluid in a 4L60E transmission keeps it running smoothly. Clean fluid helps the transmission shift gears properly and avoids damage. Knowing the right steps makes the job easier and safer.
Below is a simple guide to the tools needed and the step-by-step process to replace the transmission fluid in your 4L60E.
Tools And Materials Needed
- New transmission fluid (check your owner’s manual for type and amount)
- Transmission fluid filter
- Drain pan
- Socket wrench set
- Funnel
- Clean rags or shop towels
- Jack and jack stands or ramps
- Gloves and safety glasses
- Torque wrench (optional but recommended)
Step-by-step Fluid Replacement
- Park your vehicle on a flat surface and lift it using jack stands or ramps.
- Wear gloves and safety glasses before starting.
- Place the drain pan under the transmission pan.
- Remove the transmission pan bolts slowly to drain the old fluid.
- Remove the pan completely and clean it with a rag.
- Take out the old transmission fluid filter and replace it with a new one.
- Clean the transmission pan gasket area and install a new gasket if needed.
- Reattach the transmission pan and tighten the bolts evenly.
- Lower the vehicle back to the ground.
- Use a funnel to refill the transmission with the correct amount of new fluid.
- Start the engine and let it run for a few minutes.
- Shift through all gears to circulate the fluid.
- Check the fluid level with the dipstick and add fluid if necessary.
- Dispose of old fluid properly at a recycling center.
Credit: www.youtube.com
Signs Of Low Or Old Transmission Fluid
Transmission fluid is vital for your 4L60E transmission’s performance. It cools, lubricates, and helps shift gears smoothly. Low or old fluid causes problems fast. Knowing the signs can save you from costly repairs and keep your vehicle running well.
Pay attention to how your transmission feels and sounds. Early detection helps maintain your transmission’s health.
Common Symptoms
Slipping gears is a clear sign of low or dirty fluid. Your car may hesitate or shift roughly. You might notice a burning smell. This happens when fluid overheats or breaks down. Delayed gear engagement is another symptom. The transmission takes longer to shift into gear. Also, check for fluid leaks under your car. Low fluid levels often cause shifting issues and unusual noises.
Risks Of Neglecting Fluid Maintenance
Ignoring fluid problems leads to serious damage. Overheating can destroy internal parts quickly. Worn fluid loses its ability to protect gears. This causes faster wear and tear. Transmission failure is costly and may require replacement. Regular fluid checks and changes prevent these risks. Keep your 4L60E transmission healthy by staying alert to these signs.
Credit: www.youtube.com
Frequently Asked Questions
How Much Fluid Does A 4l60e Transmission Hold?
A 4L60E transmission typically holds about 11 to 12 quarts of transmission fluid. This includes the fluid needed for a complete drain and refill.
How Often Should I Change 4l60e Transmission Fluid?
Change the fluid every 30,000 to 60,000 miles to keep the transmission healthy. Regular changes help prevent damage and improve performance.
What Type Of Fluid Is Best For 4l60e Transmission?
Use Dexron VI automatic transmission fluid for the 4L60E. It meets the required specifications for smooth operation.
Can Low Transmission Fluid Damage A 4l60e?
Yes, low fluid can cause slipping and overheating. It may lead to costly repairs if not fixed quickly.
How To Check Transmission Fluid Level On A 4l60e?
Park on level ground and warm up the engine. Use the dipstick to check fluid level and color for proper maintenance.
Conclusion
Knowing the right amount of transmission fluid keeps your 4L60E running well. Too little or too much fluid can cause problems. Check your vehicle’s manual for exact numbers. Regular fluid checks help avoid costly repairs. Keep your transmission healthy with proper care.
It’s a small step that makes a big difference. Don’t forget to use the correct fluid type too. Simple maintenance saves time and money in the long run.
